PoE Injector

PoE injectors or inject direct current (DC) power via networking wires to power networking gadgets. Also, they are referred to as midspans or midspan hubs. Power over ethernet injectors allow Ethernet, a well known local area network (LAN) protocol, to get DC power with data packages. This eliminates the requirement for separate energy cables, decreasing cable fees and simplifying trouble-shooting.

[yasr_overall_rating size=”large”]

OUSM PoE Injector Offical Website:  https://www.poeinjector.net/

OUSM Alibaba Online Store:  http://ousm.en.alibaba.com/

Like some other Power over ethernet solutions, PoE injectors abide by IEEE 802.3af, an electrical distribution standard with the Institute of Electric and Electronics Engineers (IEEE). The 802.af standard specifies 2 modes of operation: Type A, in which power and data are carried in the exact same data pairs as Ethernet; and also T Type B, in which energy is carried over unused pairs.

What is a PoE injector?

The POE injector, a unit also called the midspan or injects power to the Ethernet wire. The injector provides power to data which is from a non-PoE switch or endspan. There’s an exterior power source.

Please find the Models Our OUSM can supply you belows;If you want to get wholesale price of PoE Injector,you can visit our alibaba or Official website to get quotations.

OUSM PoE Injector Offical Website:  https://www.poeinjector.net/

OUSM Alibaba Online Store:  http://ousm.en.alibaba.com/

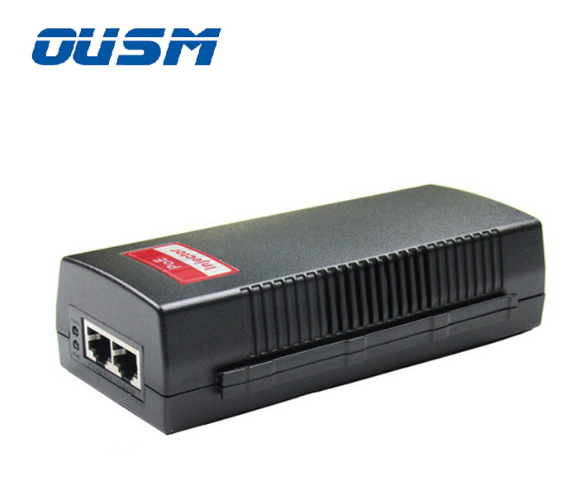

The Gigabit PoE+ Injector, Model OUSM-GB24 24W48V0.5A, combines electric power along with a Gigabit network link to create a Gigabit Power over Ethernet Plus (PoE+) signal. Link this gadget to a non-PoE Gigabit switch then run the Ethernet wire for approximately 100 meters (328 ft.) to network PoE+ or Power over ethernet gadgets. The built-in power source minimizes installation mess.

Auto detecting technologies provides 30 W to 802.3at PoE+ gadgets or 15 W to 802.3af Power over ethernet devices. You don’t need to get a Power over ethernet switch.make use of a current open port from the non-PoE switch to save installment and devices charges while setting up TRENDnet Power over ethernet access points and IP digital cameras in distant places.

IEEE 802.3at PoE+ (30 W) compliant
Backwards suitable for IEEE 802.3af PoE (15 W) gadgets
Automatically gives a PoE+ (30 W) or PoE (15 W) link to the product
Built-in power source
Network gadgets for ranges up to 100 meters (328 ft.)
1 x 10/100/1000 Mbps Auto-MDIX Data In port
1 x 10/100/1000 Mbps PoE+ Auto-MDIX Data Out port
Energy port along with LED indicator
Quickly install a PoE+ or Power over ethernet gadget in which a power outlet isn’t accessible
Minimize installation and network devices fees
Safeguards network gadgets along with short circuit protection
3-year warranty

Want to know more information of our PoE Injector,please visit

OUSM PoE Injector Offical Website:  https://www.poeinjector.net/

OUSM Alibaba Online Store:  http://ousm.en.alibaba.com/

Integrating EEE and PoE

After integration of Power over ethernet with the IEEE 802.3az Energy-Efficient Ethernet (EEE) standard potentially generates additional power savings. Pre-standard integrations of EEE and Power over ethernet (including Marvell’s EEPoE defined in a May 2011 white paper) claim they can get a savings up to 3 W per link. This saving is particularly crucial as higher power gadgets come online.

“With the development of Power over ethernet from a pretty low power supply (approximately 12.95 W each port) to one with gadgets of up to 25.5 W, the dc power losses over Ethernet cables elevated significantly. Roughly 4.5 W/port of power is wasted on the CAT5, CAT5e, CAT6 or CAT6A wire…after 100 m… EEE generally saves about 1 W every link, therefore handling the 4.5 W every link loss through Power over ethernet transmission inadequacy would provide far more incremental savings. Brand new energy-efficient Power over ethernet (EEPoE) technologies can easily improve performance to 94% when sending in the exact same 25 ohm cable, driving IEEE 802.3at-compliant equipment in synchronous 4-pairs. When you use synchronous 4-pairs, driven devices are fed making use of all of the accessible cables. As an example, over a 24-port IEEE 802.3at-2009 Style 2 system (providing 25.5 W each port), greater than 50 W are saved.”

Using the PoE Injector?

Power over ethernet injector excels in delivering data when delivering Power over ethernet to standard-based PoE as well as PoE+ compliant gadgets. Assuming you have a non-PoE switch, a PoE injector could be used to power gadgets just like network access points. Here we show the ways for powering IP digital camera (it may be different Power over ethernet enabled gadgets) along with a PoE injector as well as a non-PoE networking switch, all you need is Ip address cameras, Power over ethernet injectors (depends upon the quantity of driven IP cameras), regular networking switch and Cat5e, Cat6 or Cat6a Ethernet cable.

One. Check all devices to make sure IP camera, Power over ethernet injector and management of your camera is working. Make all of the video and network configurations before installing the IP digital camera.

Two. Hook the Ethernet cable to the PoE injector’s Power/Data interface and to IP digital camera’s PoE port.

Three. Mount the IP camera in the location in which adequate light is accessible therefore it can catch a clear picture on screen.

Four. Connect another Ethernet wire to connect injector’s Info port as well as the Ethernet switch.

Five. Connect injector power cord to a nearby AC electrical socket.

Methods to upgrade to Power over ethernet

Combining Power over ethernet to the network is easy, and you will find 2 ways you can pick:

The Power over ethernet switch is actually a network switch which has Power over Ethernet injection built-in. Just link other network gadgets to your switch as normal, and the switch can identify if they are POE-compatible and give power immediately.Power over ethernet switches are available to match all devices, from low-cost unmanaged edge switches with a few slots, up to complicated multi-port rack-mounted models with advanced supervision.

The midspan (or POE injector) can be used to add Power over ethernet capacity to normal non-POE network links. Midspans is available to update present LAN installation to Power over ethernet, and supply a flexible alternative in which fewer Power over ethernet ports are needed. Updating every network link to Power over ethernet is as easy as fixing it with the midspan, and as with Power over ethernet switches, power injection is managed and automatic.
Midspans are found as multi-port rack-mounted models or low-cost single-port injectors.

Additionally it is easy to update driven gadgets, including IP cameras, to Power over ethernet with a POE splitter. The POE splitter is patched to the digital camera’s network internet connection, and taps off the Power over ethernet, that it turns to a lower voltage ideal for the digital camera.

Several significantly useful functions that Power over ethernet linked gadgets provide include the following:
  • System admins can easily keep track of energy consumption
  • Smaller footprint, which means it needs less devices to help you working
  • Systems are generally plug and play
  • Power conversion capacity from AC to DC while delivering data to distant gadgets

What’s the distinction between the Power over ethernet injector and a PoE splitter?

The main difference between the injector and a splitter is the fact that the Power over ethernet injector transmits power to PoE devices which gets data via existing non-POE switches. The splitter also supplies power, however it does this by splitting the power from the data and feeding it to the separate input that the non-PoE compliant gadget will use.

What’s Ethernet engineering?

Power over Ethernet (POE) engineering delivers 10/100/1000 Mbps of data and 15W, 30W, 60W, and up to 90W of energy budget to help gadgets over Cat5e and Cat6 Ethernet cables for a highest length of 100m.

The reason why PoE Injectors Stand-Out of Users

To the majority of the customers, 2 things may reign ideal with regards to scoping brand new devices installation. Money and time.

Don’t need to wait or pay certified electrical sub-contractors may also help you save a lot of money. To be honest, if you don’t have to farm out of the installment work, you can keep more of the money for yourself.

Productivity and handling of energy are driving the industry. Since the price factors are much cheaper, the quantity of private and public industry Power over ethernet installation is growing.

Driven Gadgets and Energy Sourcing Devices

Power over ethernet networks comprise of powered devices (PD) as well as power sourcing equipment (PSE). PDs don’t require different Control over Ethernet injector through GlobTekpower wires for local alternating electric current (AC). Alternatively, they will use a typical RJ-45 port and could be inserted from wall outlets. PSE outputs are restricted to 15.4 W each RJ-45 port. Since longer Ethernet links demonstrate a major drop, voltages up to 57 VDC can be utilized along with Power over ethernet injectors.


What Makes a Fantastic Power over ethernet Injector Setting up Any time you consider injectors, your are considering extension. The target would be to supply the exact same control of an extended distance by merging wire with the injector.Basically, you are beginning the doorway to putting remote gadgets in hard-to-reach places with a small impact on current structures.

The Power over ethernet market has continued to grow in the last 10 years, and shows no symbol of reducing. The technology is growing tremendously, mainly because of improving demand for services.
